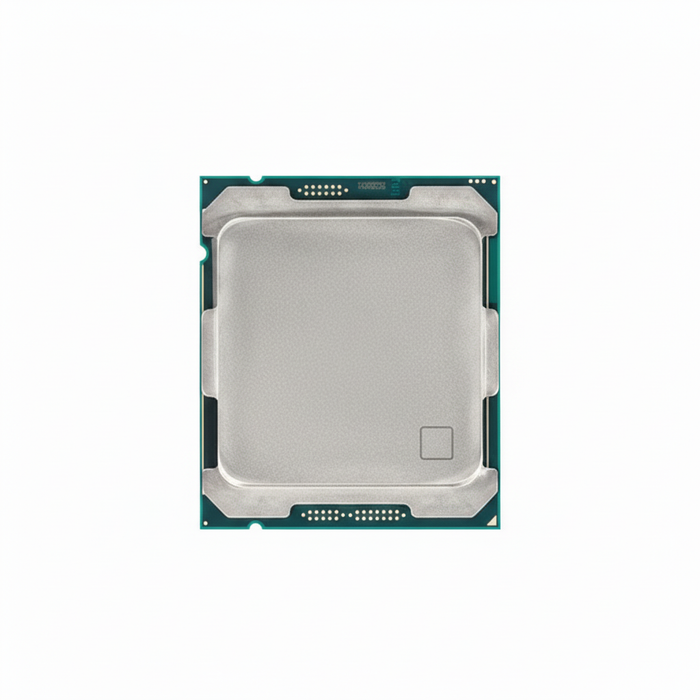

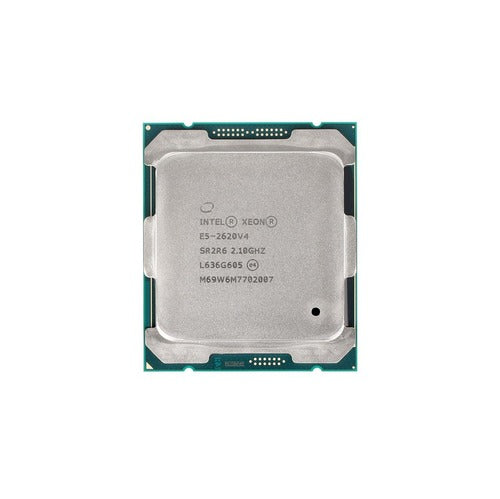

Intel Xeon E5-2620 v4 CM8066002032201 Processor - Octa Core (8 Core) - 2.10 to 3 GHz Overclocking Speed- OEM Pack - 20 MB L3 Cache - 2 MB L2 Cache - 64 Bit Processing - 14 Nanometer - 85 Watts - E5-2600 v4
Model Number | CM8066002032201 |
Product Name | Intel Xeon E5-2620 v4 CM8066002032201 Processor |
Product Type | Processor |
Processor Type | Server |
Series | Xeon E5-2600 v4 |
Processor Number | E5-2620 v4 |
Processor Code Name | Broadwell |
Max. Memory Size | 1.5 TB |
Memory Type | DDR4 1600/1866/2133 |
Memory Channels | 4 |
Max. Memory Bandwidth | 68.3 Gbps |
Physical Address Extensions | 46-bit |
ECC Memory Supported | Yes |
Core Stepping | R0 |
Lithography | 14 nanometer |
Number of Cores | 8 |
Number of Threads | 16 |
Processor Speed | 2.10 GHz to 3.00 GHz |
L3 Cache Size | 20 MB |
Bus Speed | 8.00 GTps |
Thermal Power | 85 Watts |
Scalability | 2S |
PCI Express Revision | 3 |
PCI Express Configurations | x4, x8, x16 |
PCI Express Lanes | 40 |
Sockets Supported | FCLGA2011 |
Max. CPU Configuration | 2 |
Advanced Technologies | Intel Turbo Boost Technology 2.0, Intel Hyper-Threading Technology, Intel Transactional Synchronization Extensions, Intel 64, Instruction Set 64-bit, Instruction Set Extensions Intel AVX2, Idle States, Enhanced Intel SpeedStep Technology, Intel Demand Based Switching, Thermal Monitoring Technologies |
Intel vPro Eligibility | Intel vPro Platform |
Security & Reliability | Intel AES New Instructions, Secure Key, Intel OS Guard, Intel Trusted Execution Technology, Execute Disable Bit, Intel Virtualization Technology (VT-x), Intel Virtualization Technology for Directed I/O (VT-d), Intel VT-x with Extended Page Tables (EPT) |
No. of QPI Links | 2 |
Compatible Products | Intel Server System R1304WTTGSR, R1304WT2GSR, R1208WTTGSR, R1208WT2GSR, R2208WTTYSR, R2208WTTYC1R, R2224WTTYSR, R2312WTTYSR, R2308WTTYSR, R2208WT2YSR, Intel Compute Module HNS2600TPNR, HNS2600TP24STR, HNS2600TP24R, HNS2600TPFR, HNS2600TPR, HNS2600TP24SR, HNS2600KPR, HNS2600KPFR, Intel Server Board S2600CWTSR, S2600CWTR, S2600CW2SR, S2600CW2R, S2600KPR, S2600KPFR, S2600KPTR, S2600TPNR, S2600TPR, S2600TPFR, S2600WTTS1R, S2600WT2R, S2600WTTR, Intel Server System MCB2224THY1, VRN2224THY4, VRN2224THY2 |
Open Box: Like new in original manufacturer condition.
All products have a 90 day SaveCentral warranty and are part of our 30 Day Return Policy.
Please contact us with any questions.
